Granulator - 700
Back
Technical Specifications
| Model | PCH - 700 | PCH - 700/5 | PR - 700 | PSTG - 700 |
|---|---|---|---|---|
| Length of Blades | 700mm | 700mm | 700mm | 220mm-9,350mm-4 |
| No. of Blades | 4x2 | 5x2 | 6x2 | 13 |
| Throat Size | 700 x 650mm | 700 x 650mm | 700 x 650mm | 700 x 650mm |
| Grinding Capacity | 500 Kgs/Hr | 550 Kgs/Hr | 600 Kgs/Hr | 700 Kgs/Hr |
| Power Required | 40HP (30 KW) | 40HP (30 KW) | 40HP (30 KW) | 50HP (37.5 KW) |
| Screen Area | 5600 Sq.Cm | 5600 Sq.Cm | 5600 Sq.Cm | 5600 Sq.Cm |
| Floor Space (L&W) in mm | 1875 x 1500 | 1875 x 1500 | 1875 x 1500 | 1875 x 1500 |
| Suitable for grinding | Grinding 100/120Ltr Barrel, Med. size Chairs & Auto parts | ∅250mm Pipes, Petrol Tanks & Pet Bottles | PVC Tiles & H.I.P.S. Sheets | Solid Ind. Items, Lumps, Preforms etc. |
Note
- Higher Models available on request.
- Capacity depends on type of material, scrap size & shape.
- PSTG series - Number of blades & output will depend on application.
- All specifications are subject to change without notice for constant product development.
- Control Box, Side Chute, Sucking blower attachments, Silo, Conveyor, Dust collector attachments are optional.

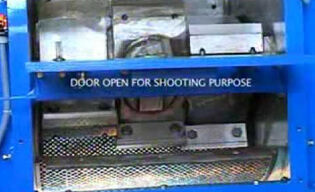

Product Videos
